Documentation for DHPO XML Schema
Definition Type: Element
Name: Resubmission
Containing Schema: ClaimSubmission.xsd
MinOccurs 0
MaxOccurs 1
Abstract

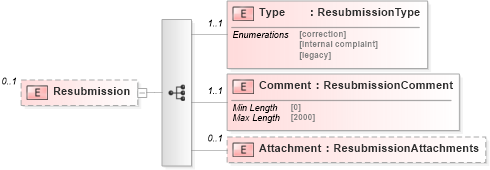

Collapse XSD Schema Diagram:
Drilldown into Attachment Drilldown into Comment Drilldown into TypeXSD Diagram of Resubmission
Collapse XSD Schema Code:
<xs:element minOccurs="0" maxOccurs="1" name="Resubmission">
    <xs:complexType>
        <xs:sequence>
            <xs:element minOccurs="1" maxOccurs="1" name="Type" type="tns:ResubmissionType" />
            <xs:element minOccurs="1" maxOccurs="1" name="Comment" type="tns:ResubmissionComment" />
            <xs:element minOccurs="0" maxOccurs="1" name="Attachment" type="tns:ResubmissionAttachments" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Type Type 1 1
Comment Comment 1 1
Attachment Attachment 0 1
