Documentation for DHPO XML Schema
Definition Type: Element
Name: Member
Containing Schema: ElectronicReferral.xsd
MinOccurs 1
MaxOccurs 1
Abstract

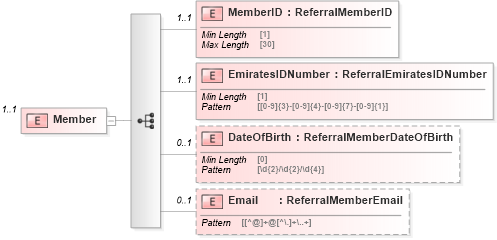

Collapse XSD Schema Diagram:
Drilldown into Email Drilldown into DateOfBirth Drilldown into EmiratesIDNumber Drilldown into MemberIDXSD Diagram of Member
Collapse XSD Schema Code:
<xs:element minOccurs="1" maxOccurs="1" name="Member">
    <xs:complexType>
        <xs:sequence>
            <xs:element minOccurs="1" maxOccurs="1" name="MemberID" type="tns:ReferralMemberID" />
            <xs:element minOccurs="1" maxOccurs="1" name="EmiratesIDNumber" type="tns:ReferralEmiratesIDNumber" />
            <xs:element minOccurs="0" maxOccurs="1" name="DateOfBirth" type="tns:ReferralMemberDateOfBirth" />
            <xs:element minOccurs="0" maxOccurs="1" name="Email" type="tns:ReferralMemberEmail" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MemberID MemberID 1 1
EmiratesIDNumber EmiratesIDNumber 1 1
DateOfBirth DateOfBirth 0 1
Email Email 0 1
