Documentation for Documentation for DHPO XML Schema
Definition Type: Element
Name: Header
Containing Schema: MemberRegister.xsd
MinOccurs 1
MaxOccurs 1
Abstract

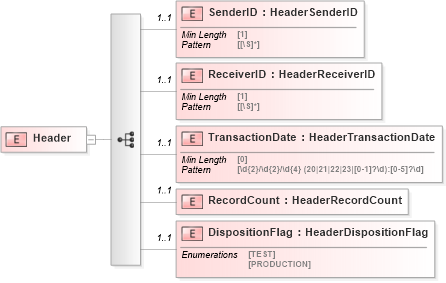

Collapse XSD Schema Diagram:
Drilldown into DispositionFlag Drilldown into RecordCount Drilldown into TransactionDate Drilldown into IntermediaryID Drilldown into TPAID Drilldown into PayerID Drilldown into ReceiverID Drilldown into SenderIDXSD Diagram of Header
Collapse XSD Schema Code:
<xs:element minOccurs="1" maxOccurs="1" name="Header">
    <xs:complexType>
        <xs:sequence>
            <xs:element minOccurs="1" maxOccurs="1" name="SenderID" type="tns:HeaderSenderID" />
            <xs:element minOccurs="1" maxOccurs="1" name="ReceiverID" type="tns:HeaderReceiverID" />
            <xs:element minOccurs="1" maxOccurs="1" name="PayerID" type="tns:HeaderPayerID" />
            <xs:element minOccurs="0" maxOccurs="1" name="TPAID" type="tns:HeaderTPAID" />
            <xs:element minOccurs="0" maxOccurs="1" name="IntermediaryID" type="tns:HeaderIntermediaryID" />
            <xs:element minOccurs="1" maxOccurs="1" name="TransactionDate" type="tns:HeaderTransactionDate" />
            <xs:element minOccurs="1" maxOccurs="1" name="RecordCount" type="tns:HeaderRecordCount" />
            <xs:element minOccurs="1" maxOccurs="1" name="DispositionFlag" type="tns:HeaderDispositionFlag" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SenderID SenderID 1 1
ReceiverID ReceiverID 1 1
PayerID PayerID 1 1
TPAID TPAID 0 1
IntermediaryID IntermediaryID 0 1
TransactionDate TransactionDate 1 1
RecordCount RecordCount 1 1
DispositionFlag DispositionFlag 1 1
