Documentation for DHPO XML Schema
Definition Type: Element
Name: Diagnosis
Containing Schema: PriorRequest.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

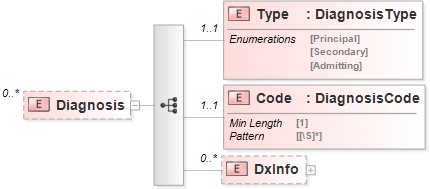

Collapse XSD Schema Diagram:
Drilldown into DxInfo Drilldown into Code Drilldown into TypeXSD Diagram of Diagnosis
Collapse XSD Schema Code:
<xs:element minOccurs="0" maxOccurs="unbounded" name="Diagnosis">
    <xs:complexType>
        <xs:sequence>
            <xs:element minOccurs="1" maxOccurs="1" name="Type" type="tns:DiagnosisType" />
            <xs:element minOccurs="1" maxOccurs="1" name="Code" type="tns:DiagnosisCode" />
            <xs:element name="DxInfo" minOccurs="0" maxOccurs="unbounded">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element minOccurs="1" name="Type" type="tns:DxInfoType" />
                        <xs:element minOccurs="1" name="Code" type="tns:DxInfoCode" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Type Type 1 1
Code Code 1 1
DxInfo DxInfo 0 unbounded
