Documentation for DHPO XML Schema
Definition Type: Element
Name: Activity
Containing Schema: PriorRequest.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

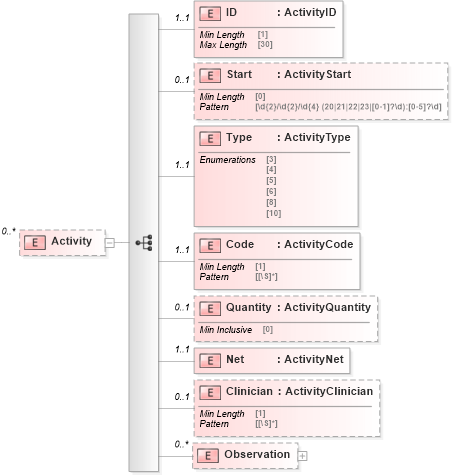

Collapse XSD Schema Diagram:
Drilldown into Observation Drilldown into Clinician Drilldown into Net Drilldown into Quantity Drilldown into Code Drilldown into Type Drilldown into Start Drilldown into IDXSD Diagram of Activity
Collapse XSD Schema Code:
<xs:element minOccurs="0" maxOccurs="unbounded" name="Activity">
    <xs:complexType>
        <xs:sequence>
            <xs:element minOccurs="1" maxOccurs="1" name="ID" type="tns:ActivityID" />
            <xs:element minOccurs="0" maxOccurs="1" name="Start" type="tns:ActivityStart" />
            <xs:element minOccurs="1" maxOccurs="1" name="Type" type="tns:ActivityType" />
            <xs:element minOccurs="1" maxOccurs="1" name="Code" type="tns:ActivityCode" />
            <xs:element minOccurs="0" maxOccurs="1" name="Quantity" type="tns:ActivityQuantity" />
            <xs:element minOccurs="1" maxOccurs="1" name="Net" type="tns:ActivityNet" />
            <xs:element minOccurs="0" maxOccurs="1" name="Clinician" type="tns:ActivityClinician" />
            <xs:element minOccurs="0" maxOccurs="unbounded" name="Observation">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element minOccurs="1" maxOccurs="1" name="Type" type="tns:ObservationType" />
                        <xs:element minOccurs="1" maxOccurs="1" name="Code" type="tns:ObservationCode" />
                        <xs:element minOccurs="0" maxOccurs="1" name="Value" type="tns:ObservationValue" />
                        <xs:element minOccurs="0" maxOccurs="1" name="ValueType" type="tns:ObservationValueType" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID ID 1 1
Start Start 0 1
Type Type 1 1
Code Code 1 1
Quantity Quantity 0 1
Net Net 1 1
Clinician Clinician 0 1
Observation Observation 0 unbounded
